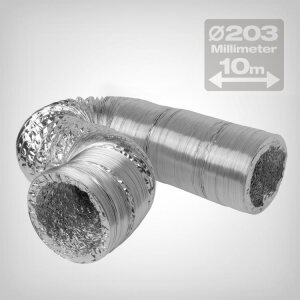

Luftschlauch Aluflexrohr, 10 Meter, ø 203mm

The aluminium flexible air duct 10 m ø 203 mm is a flexible connection hose for ventilation, exhaust and climate systems. It is suitable for systems with a round connection diameter of 203 mm and can be installed easily thanks to its flexible construction.

The duct extends to a full length of 10 meters and is supplied compressed to approx. 0.8 meter. This makes it easy to store, transport and use in different installation situations.

Suitable for Heating, Ventilation and Air Conditioning Systems

This aluminium flex duct is designed for the heating, ventilation and air conditioning market. It can be used in mechanical and natural ventilation systems, air transport systems, heat recovery systems, air heating systems and air conditioning systems.

Its flexible shape allows the connection hose to be mounted easily on round or oval ducts. Attachment to a suitable spiral or round duct connector is typically done using a hose clamp.

Durable Material with Steel Spiral

The duct material consists of a multi-layer aluminium polyester laminate tube with an integrated steel wire spiral. This construction provides flexibility, stability and reliable airflow guidance.

With a temperature resistance of -30 °C to +140 °C, the aluminium flex duct is suitable for a wide range of ventilation and exhaust applications. The maximum operating pressure is +2500 Pa, and the maximum air velocity is 30 m/s.

Applications

The 203 mm aluminium flexible duct is suitable for connecting and directing air in various technical ventilation systems. It can be used for exhaust air, intake air, heat recovery, air heating and air conditioning applications.

Typical applications:

• Mechanical and natural ventilation systems
• Heat recovery systems
• Balanced ventilation systems
• Air heating systems
• Air conditioning systems
• Exhaust and intake air ducts

Technical Details

• Product name: Aluminium flexible air duct
• Product type: flexible aluminium air hose / aluminium flex duct / ventilation duct
• Diameter: ø 203 mm
• Length: 10 m
• Compressed length: approx. 0.8 m
• Material: aluminium polyester laminate
• Reinforcement: steel wire spiral
• Temperature resistance: -30 °C to +140 °C
• Operating pressure: max. +2500 Pa
• Air velocity: max. 30 m/s
• Total thickness: 45 micrometers, without adhesive
• Wire spacing: 36 mm
• Installation: suitable for round and oval ducts
• Fastening: with hose clamp on a suitable duct connector
• Application area: ventilation, exhaust air, intake air, HVAC, heat recovery

What’s Included

• 1 x aluminium flexible air duct ø 203 mm, 10 m

Warnings & Installation Information

• Before installation, check that the connection diameter matches the duct.
• Use only for suitable ventilation, exhaust and climate applications.
• Do not bend, crush or kink the duct excessively, as this may restrict airflow.
• Use suitable hose clamps during installation.
• Do not use in direct contact with open flames.
• Do not exceed the stated temperature and pressure limits.
• Follow applicable safety requirements and installation regulations when used in technical systems.
